XLPE Cable Has High Electric Strength, Mechanical Strength, High-Ageing Resisting, Environmental Stress Resisting Aiti-Chemical, Corrosion, And Simple Construction, Using Convenient And Higher Operating Of Long Term Temperature. It Can Be Laid With No Drop Restriction.
Various Of Flame-Retardant XLPE Cable Can Be Manufactured With Three Technology. The Flame-Retardant Cable Covers All Kinds Of Low-Smoke, Halogen Free, And Non-Smoke Non-Halogenated And Three Classes Of A,B,C.
Installation Flexibility:
Simple Construction: The cable design allows for straightforward installation, reducing labor costs and time.
No Drop Restriction: Can be laid without restrictions on vertical or horizontal drops, enhancing installation versatility.
XLPE insulated PVC electrical copper power cables are suitable for a wide range of applications.Including:
Power distribution in residential, commercial, and industrial settings.
Use in harsh environments such as chemical plants, manufacturing facilities, and outdoor installations.
Power supply for critical infrastructure, where reliability and safety are paramount.

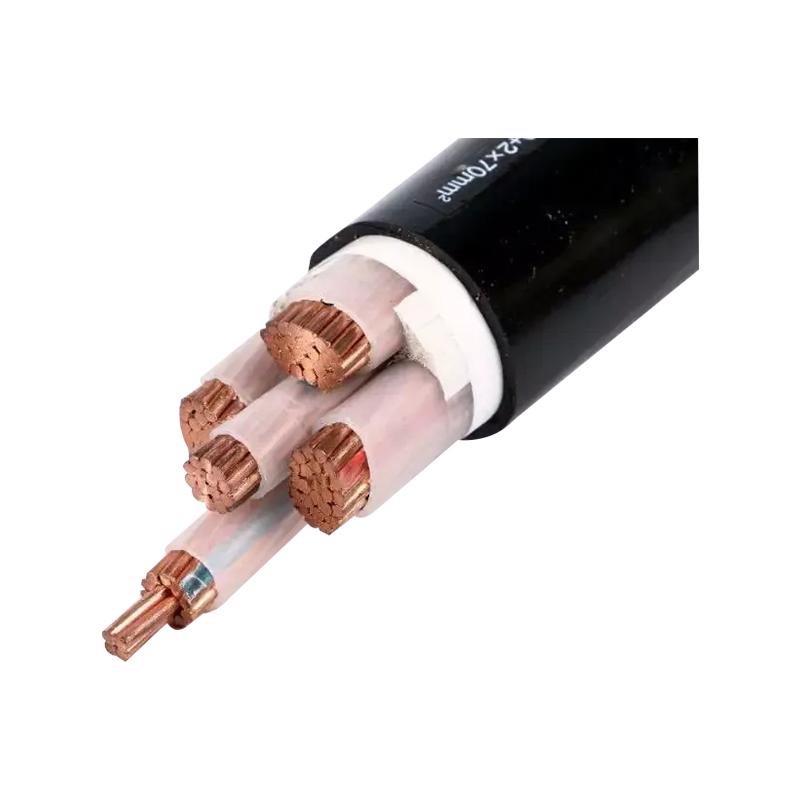

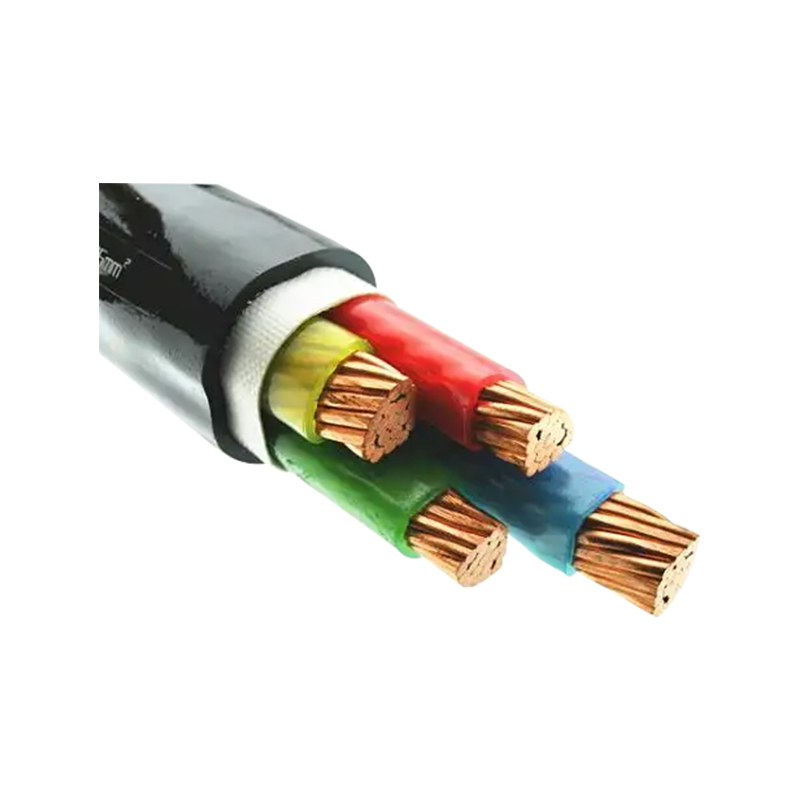

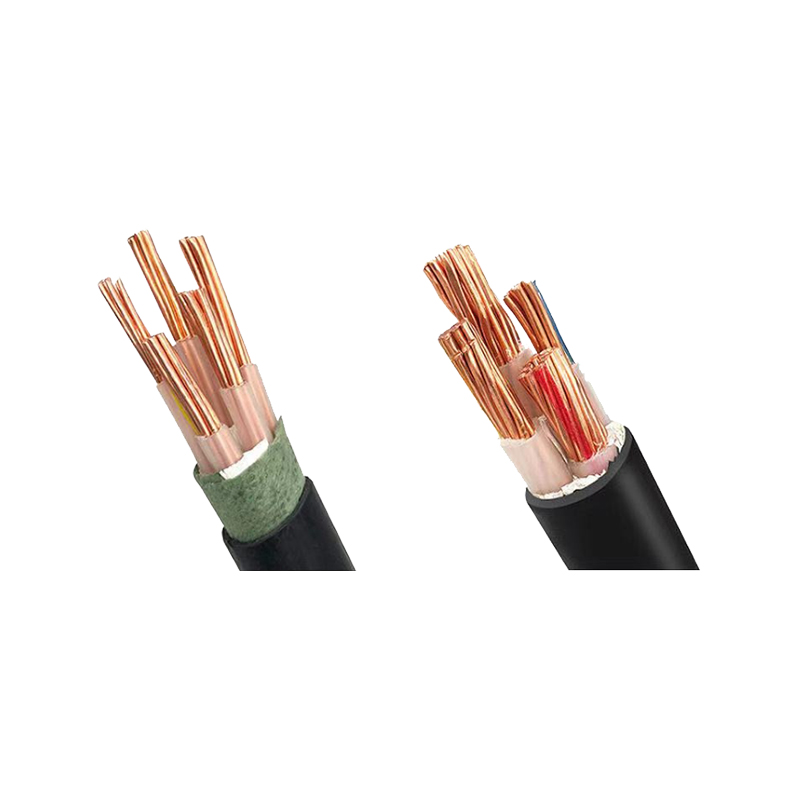

XLPE insulated PVC Electrical Copper Power Cable
-
-
Data Of Insulation Earthing Copper Cable
Description
0.6/1KV copper core XLPE insulated PVC sheathed power cable
Standard
IEC60502-1, BS6622, VDE0276, AS/NZS, UL etc.
Conductor
High purity oxygen free copper (higher than 99.9%)
Insulation
XLPE
Sheath
PVC
Armoure
steel wire
Filler
Polypropylene filament with lapped binding tape
Wrap tape
Fiberglass tape or won-woven fabric
Insulation color
Red, yellow, blue, green, yellow, green/yellow, black, grey, brown or according to customer's favor
Related voltage
0.6/1KV
Character
Fire-retardant, heat-resisting, low smoke zero halogen.
Temperature Rating
-15°C to + 90°C
Specification, size, technical data
Nominal sectional area (mm²)
Insulation thickness(mm)
Sheath thickness(mm)
Approx. diameter (mm)
Approx.weight (kg/km)
D.C.resistance of conductor (Ω/km)≤
Testing voltage A.C.(kv/5min)
Insulation resistance 90℃(MΩ .km) ≥
Current rating
In air (A)
Direct in soil(A)
3x1.5
0.7
1.5
10
145
12.1
3.5
1.10
25
30
3x2.5
0.7
1.5
11
185
7.41
3.5
0.916
30
35
3.x4
0.7
1.5
12
250
4.61
3.5
0.757
40
50
3x6
0.7
1.5
13
320
3.08
3.5
0.645
50
60
3x10
0.7
1.5
15
450
1.83
3.5
0.523
65
80
3x16
0.7
1.5
17
640
1.15
3.5
0.431
85
100
3x25
0.9
2.0
21
940
0.727
3.5
0.444
115
130
3x35
0.9
2.0
23
1260
0.524
3.5
0.379
145
155
3x50
1.0
2.0
27
1670
0.387
3.5
0.355
175
185
3x70
1.1
2.0
30
2280
0.268
3.5
0.335
220
225
3x95
1.1
2.0
34
3020
0.193
3.5
0.290
270
270
3x120
1.2
2.5
38
3790
0.153
3.5
0.282
315
305
3x150
1.4
2.5
42
4750
0.124
3.5
0.294
360
345
3x185
1.6
2.5
45
5654
0.0991
3.5
0.303
420
390
3x240
1.7
3
51
7243
0.0754
3.5
0.283
485
455
-
