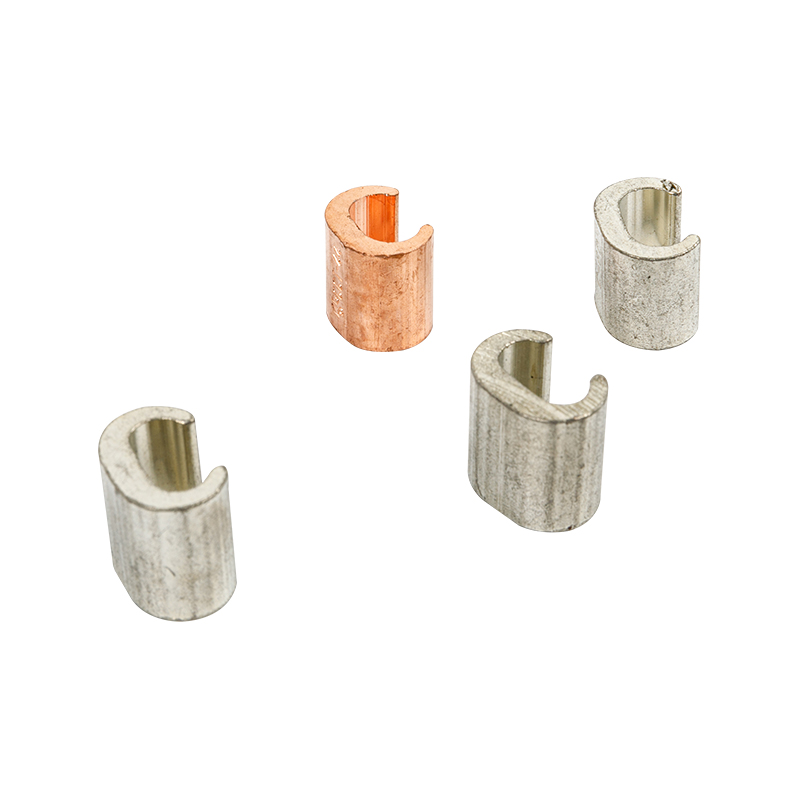

The CCT Copper C Clamp Is Suitable For Fixing Two Conductors Together In Electric Connecting.The Material Is Copper ,And Surface Can Be Tin Plated
The CCT Copper C Clamp Is Suitable For Fixing Two Conductors Together In Electric Connecting.The Material Is Copper ,And Surface Can Be Tin Plated
Installation Data Of Copper C Clamp
Model |
Conductor section(mm2) |
B |
H |
L |
T |
C |
CCT-10 |
7.5-14 |
9.5±0.5 |
6.5±0.5 |
12±0.5 |
1.5±0.2 |
4±0.3 |
CCT-16 |
14.5-16 |
11.8±0.5 |
7.8±0.5 |
13±0.5 |
2±0.2 |
5±0.5 |
CCT-20 |
16.5-20 |
12.8±0.5 |
9.7±0.5 |
13±0.5 |
2.6±0.2 |
5.4±0.5 |
CCT-26 |
21-26 |
15±0.5 |
10.9±0.5 |
16±0.5 |
3.0±0.2 |
7±0.5 |
CCT-44 |
27-44 |
19±0.5 |
14.4±0.5 |
20±1 |
4±0.2 |
9±0.5 |
CCT-60 |
45-60 |
21±0.5 |
15.1±0.5 |
22±1 |
4±0.2 |
10±0.5 |
CCT-76 |
61-76 |
24.4±0.5 |
17.6±0.5 |
22±1 |
5±0.2 |
10.8±0.5 |
CCT-98 |
77-98 |
27.8±0.5 |
18.8±0.5 |
25±1 |
5±0.2 |
12.8±0.5 |
CCT-122 |
99-122 |
29.8±0.5 |
21.2±0.5 |
26±1 |
5.3±0.3 |
13.5±0.5 |
CCT-154 |
123-154 |
34±0.5 |
24.4±0.5 |
28±1 |
5.5±0.3 |
17±0.5 |
CCT-190 |
155-190 |
36.5±0.5 |
25.4±0.5 |
35±1 |
5.5±0.3 |
17.4±0.5 |
CCT-240 |
191-240 |
40±0.5 |
28.5±0.5 |
40±1 |
6.5±0.3 |
19±0.5 |
CCT-288 |
141-288 |
44.5±0.5 |
31.1±0.5 |
45±1 |
6.5±0.3 |
22.3±0.5 |
CCT-365 |
289-365 |
47.5±0.5 |
34±0.5 |
50±1 |
6.8±0.5 |
24.8±0.5 |
CCT-450 |
366-450 |
56±0.5 |
41±0.5 |
60±1 |
9.2±0.5 |
28±0.5 |
CCT-560 |
451-560 |
61.5±0.5 |
45±0.5 |
65±1 |
10.7±0.5 |
31±0.5 |
CCT-700 |
561-700 |
68±0.5 |
49.5±0.5 |
70±1 |
11.2±0.5 |
34±0.5 |
Model |
Size |
Conductor Size |
|||||
H mm |
B mm |
L mm |
C mm |
Max (mm2) |
Min (mm2) |
||
LBC25-35 |
25 |
15 |
20 |
14 |
25 |
35 |
|
LBC35-35 |
26 |
15 |
20 |
14 |
35 |
35 |
|
LBC50-70 |
34 |
18 |
20 |
18 |
50 |
70 |
|
LBC70-70 |
36 |
18 |
22 |
18 |
70 |
70 |
